Rimless Single Piece-WC

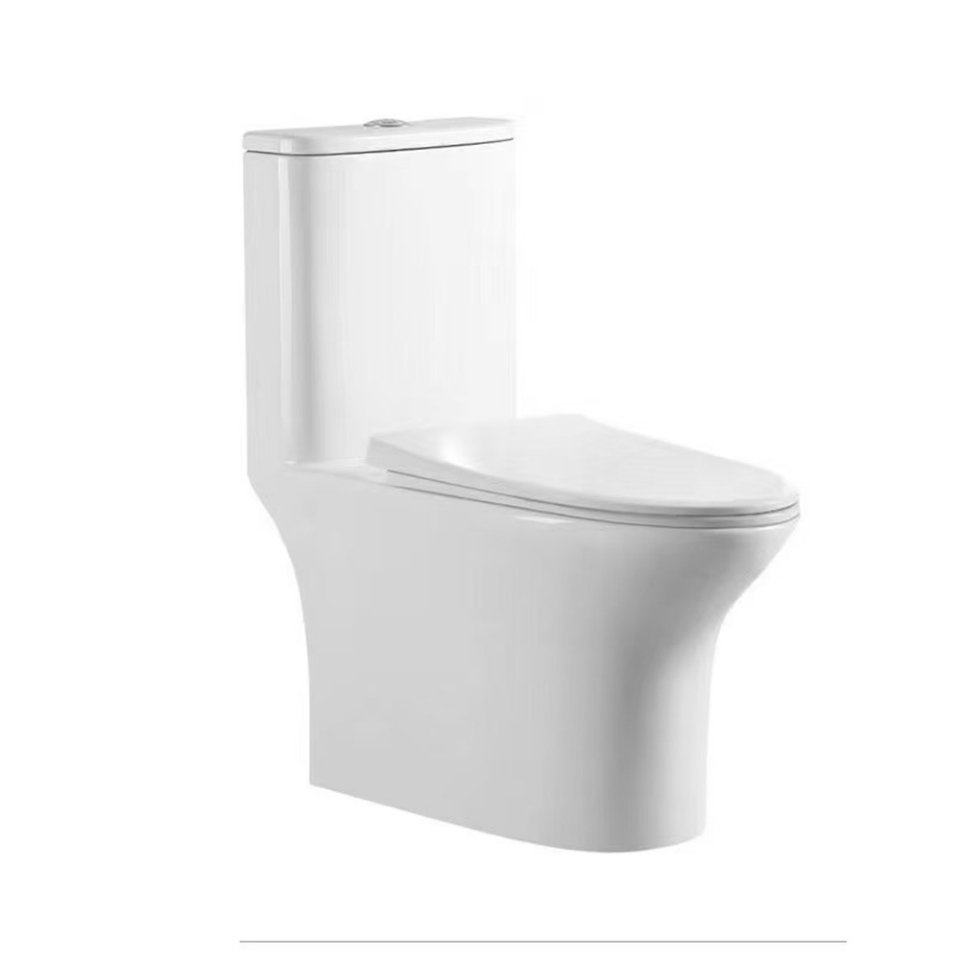

The Jaquar Single Piece WC (S-Trap) – Model FSS-WHT-29853S300UFSM is a stylish and high-performance sanitary fixture designed to elevate modern bathroom spaces. Made from premium vitreous china, it ensures durability, a smooth glossy finish, and long-lasting performance.

Featuring a rimless bowl design, this WC enhances hygiene by eliminating hidden areas where dirt and bacteria can accumulate, making cleaning easier and more effective. The advanced siphonic flushing system delivers powerful and consistent performance, while the dual flush mechanism (2.6/4.6 LPF) helps conserve water without compromising efficiency.

Designed with an S-trap configuration (300 mm), this model is ideal for floor outlet installations and standard plumbing layouts. The UF soft-close seat cover ensures quiet operation and added user comfort, making it suitable for both residential and commercial environments.

Key Highlights

• Modern rimless design for improved hygiene and easy cleaning
• S-trap configuration (300 mm) for floor outlet systems
• Powerful siphonic flushing performance
• Water-saving dual flush system (2.6/4.6 LPF)
• Anti-germ glaze for enhanced cleanliness
• UF soft-close seat cover for noise-free operation

Technical Specifications

General Details

• Brand: Jaquar
• Product Code: FSS-WHT-29853S300UFSM
• Type: Single Piece WC (S-Trap)
• Colour: White
• Material: Ceramic (Vitreous China)

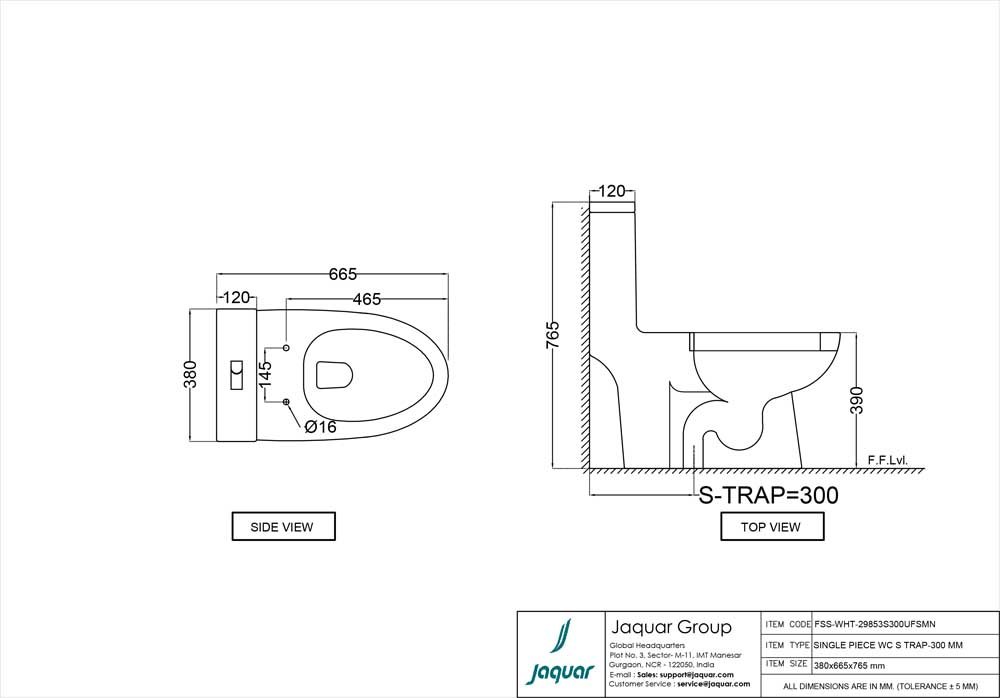

Dimensions & Weight

• Product Dimensions: 380 × 670 × 765 mm
• Bowl Inner Dimensions: 260 × 340 mm
• Net Weight: 41.15 kg
• Gross Weight: 47.5 kg
• Packaging Dimensions: 700 × 400 × 800 mm

Technical Details

• Outlet Type: Vertical
• Outlet Hole Diameter: Ø 80 mm
• Trap Distance: S-Trap – 300 mm
• Wall to Outlet Distance: ≤ 300 mm

Features

• Rimless bowl design for superior hygiene
• Siphonic flushing for powerful performance
• Dual flush system for water efficiency
• Anti-germ glaze coating
• Smooth and easy-to-maintain surface
• Durable and robust construction

Accessories Included

• UF Soft Close Seat Cover (FSS-WHT-29103UF)
• Floor Fixing Screw (ZPS-SNS-FB01)
• Wax Seal (ZPS-WHT-1401)

Care & Cleaning Guidelines

• Handle with care during storage, installation, and use due to fragile ceramic material
• Installation should be done by two persons due to product weight
• Inspect the product for any damage before installation
• Avoid over-tightening to prevent cracks or chipping
• Do not move or rock the WC after installation to avoid leakage
• Use mild, non-abrasive cleaners with a soft cloth or sponge
• Avoid harsh or chloride-based chemicals
• Rinse thoroughly with water after cleaning
• Clean chrome or metal parts with warm water and dry with a soft cloth

Quality Standard

• Manufactured under ISO 9001 Quality Management System

Summary

The FSS-WHT-29853S300UFSM combines modern rimless design, efficient flushing, and hygienic features to deliver a reliable and elegant bathroom solution. Its water-saving technology, durable construction, and easy maintenance make it an excellent choice for contemporary living spaces.
