Rimless Single piece-WC

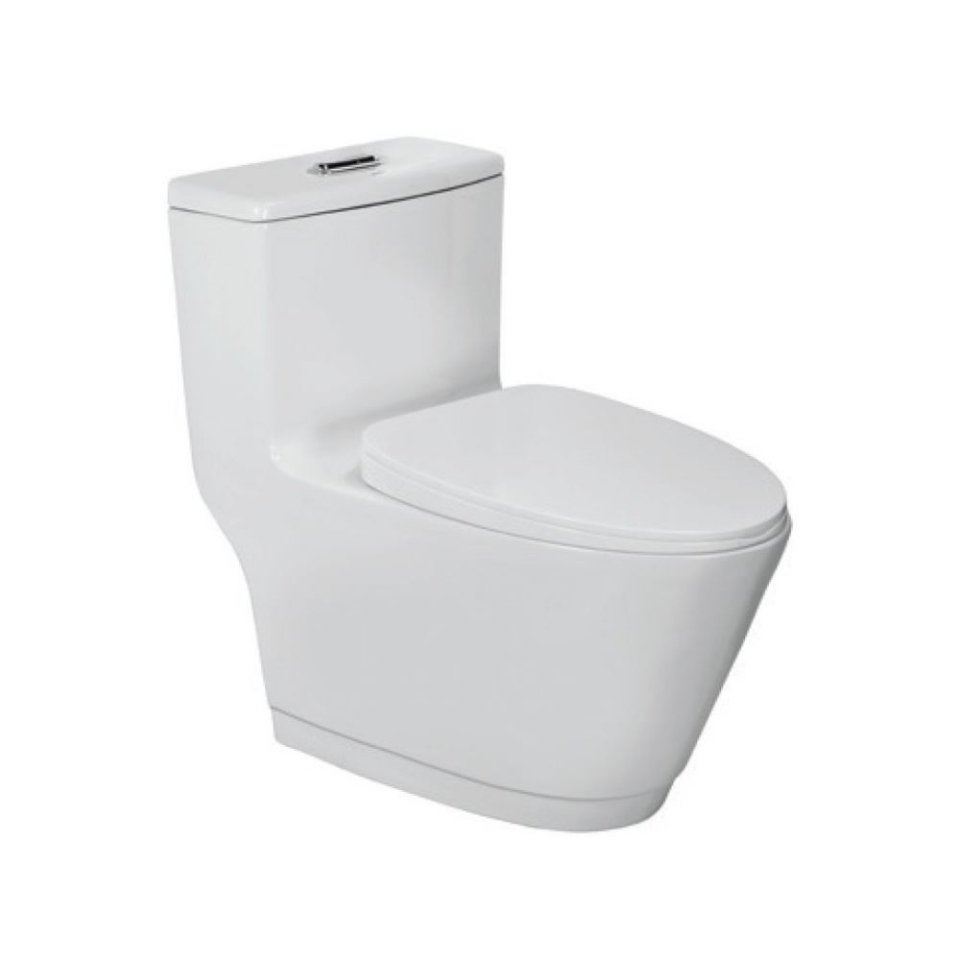

The Jaquar Single Piece WC (S-Trap) – Model VGS-WHT-81853S300UF is a premium, hygienic, and modern sanitary fixture designed for superior performance and easy maintenance. Crafted from high-quality vitreous china, it offers exceptional durability, a smooth glossy finish, and long-lasting reliability.

This model features a rimless bowl design, ensuring maximum hygiene by eliminating hidden areas where dirt and bacteria can accumulate. The open rim structure allows for more effective water distribution, making cleaning easier and more efficient.

Designed with a vertical outlet and S-trap configuration (300 mm), this WC is ideal for floor drainage systems and standard plumbing layouts. Its spacious bowl enhances user comfort, while the sleek design complements contemporary bathroom interiors.

The WC is equipped with an advanced siphonic flushing system, delivering powerful and consistent performance. The dual flush mechanism (2.6/4.6 LPF) helps conserve water without compromising on efficiency. Additionally, the anti-germ glaze coating further enhances hygiene by reducing bacterial growth.

Key Highlights

• Modern rimless bowl design for superior hygiene
• S-trap configuration (300 mm) for floor outlet installations
• Powerful siphonic flushing performance
• Water-saving dual flush system (2.6/4.6 LPF)
• Anti-germ glaze for enhanced cleanliness
• Spacious bowl for improved comfort
• Smooth and easy-to-clean surface

Technical Specifications

General Details

• Brand: Jaquar
• Product Code: VGS-WHT-81853S300UF
• Type: Single Piece WC (S-Trap)
• Colour: White
• Material: Ceramic – Vitreous China (VC)

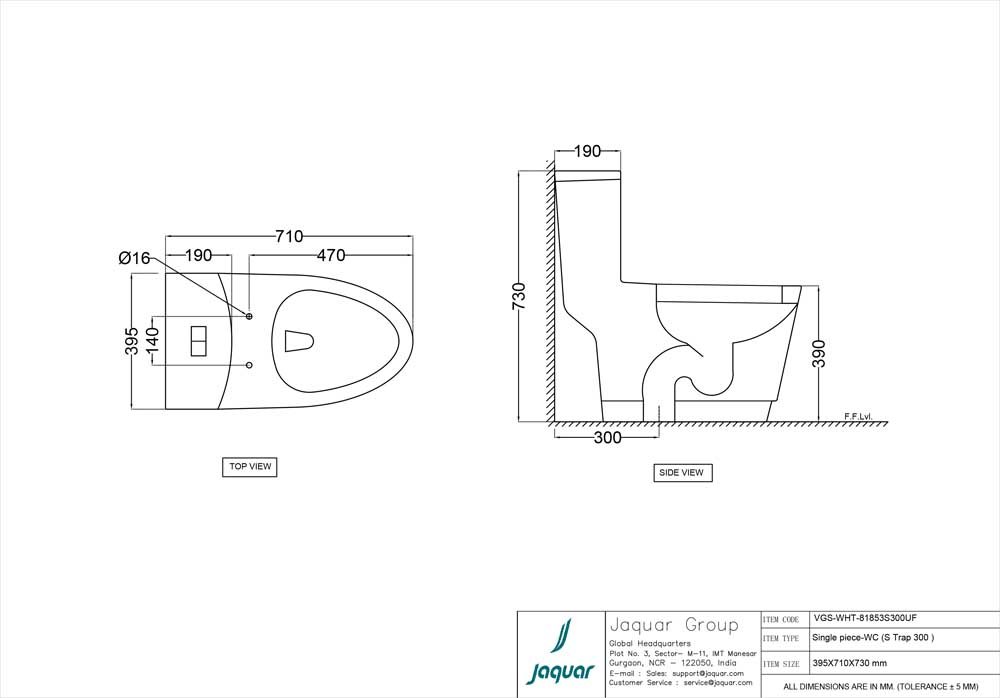

Dimensions & Weight

• Product Dimensions: 395 × 710 × 730 mm
• Bowl Inner Dimensions: 290 × 365 mm
• Net Weight: 48.8 kg
• Gross Weight: 50.6 kg
• Packaging Dimensions: 700 × 420 × 725 mm

Technical Details

• Outlet Type: Vertical
• Outlet Hole Diameter: Ø 80 mm
• Trap Distance: S-Trap – 300 mm
• Wall to Outlet Distance: ≤ 300 mm

Features

• Rimless design for improved hygiene and easy cleaning
• Siphonic flushing for efficient and powerful performance
• Dual flush system for optimized water usage
• Anti-germ glaze coating
• Smooth, durable, and easy-to-maintain surface

Accessories Included

• Seat Cover (VGS-WHT-81105NUF)
• Floor Fixing Screw (ZPS-SNS-FB01)
• Wax Seal (ZPS-WHT-1401)

Care & Cleaning Guidelines

• Handle with care during storage, transport, and installation due to fragile ceramic construction
• Installation is recommended with two persons
• Inspect the product for any damage before installation
• Avoid over-tightening to prevent cracks or chipping
• Do not move or rock the WC after installation to prevent leakage
• Use mild, non-abrasive cleaners with a soft cloth or sponge
• Avoid harsh or chloride-based chemicals
• Rinse thoroughly with clean water after cleaning
• Clean chrome or metal parts with warm water and dry with a soft cloth

Quality Standard

• Manufactured under ISO 9001 Quality Management System

Summary

The VGS-WHT-81853S300UF stands out with its rimless design, powerful flushing, and hygienic features, making it an excellent choice for modern bathrooms. Its combination of comfort, water efficiency, and easy maintenance ensures long-term value and performance.
