Rimless Single Piece WC

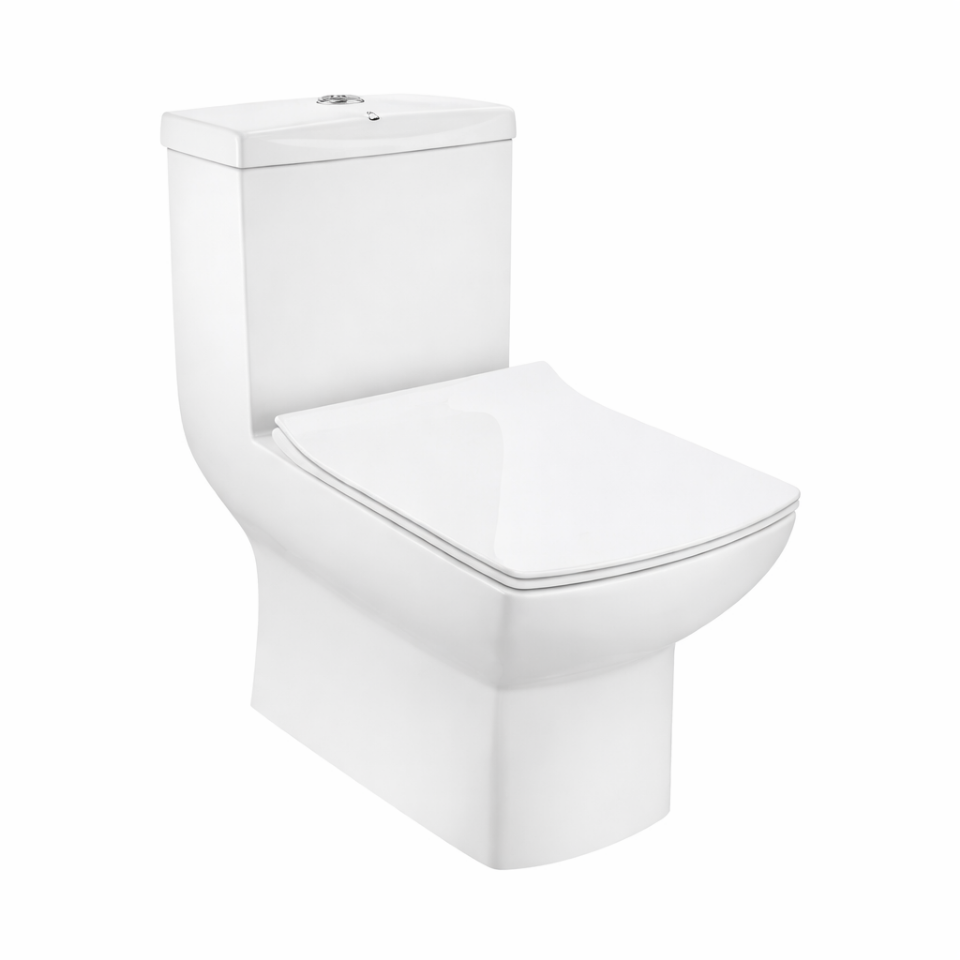

The Jaquar Single Piece WC (P-Trap) – Model LYS-WHT-38853P180UFSM is a compact and contemporary sanitary solution designed for efficient performance, modern aesthetics, and enhanced hygiene. Crafted from high-quality vitreous china, this WC ensures durability, a smooth glossy finish, and long-lasting reliability.

Designed with a horizontal outlet (P-trap – 180 mm), this model is ideal for wall drainage systems, making it suitable for bathrooms with specific plumbing configurations. Its sleek, space-saving design is complemented by a UF soft-close slim seat cover, offering quiet operation and improved user comfort.

Equipped with advanced siphonic flushing and silent torque technology, the WC delivers powerful yet noiseless performance. The dual flush system (3/4.5 LPF) helps conserve water while maintaining efficient waste removal. Additionally, the anti-germ glaze coating enhances hygiene by reducing bacterial growth on the surface.

Key Highlights

• Compact and modern single-piece design
• P-trap configuration (180 mm) for wall outlet installations
• Silent torque with siphonic flushing for quiet, powerful performance
• Water-saving dual flush system (3/4.5 LPF)
• Anti-germ glaze for improved hygiene
• UF soft-close slim seat cover for added comfort

Technical Specifications

General Details

• Brand: Jaquar
• Product Code: LYS-WHT-38853P180UFSM
• Type: Single Piece WC (P-Trap)
• Colour: White
• Material: Ceramic (Vitreous China)

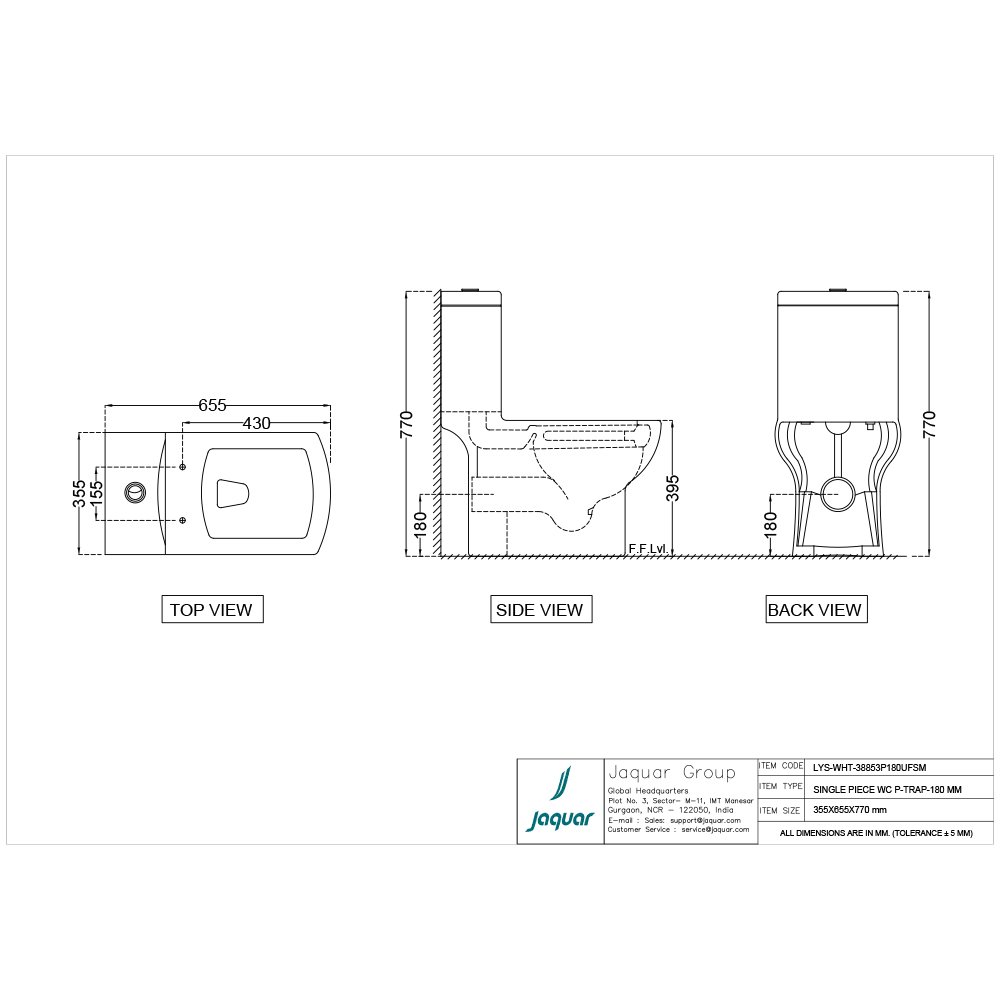

Dimensions & Weight

• Product Dimensions: 355 × 655 × 770 mm
• Bowl Inner Dimensions: 255 × 325 mm
• Net Weight: 38.5 kg
• Gross Weight: 45.0 kg
• Packaging Dimensions: 690 × 385 × 770 mm

Technical Details

• Outlet Type: Horizontal
• Outlet Hole Diameter: Ø 100 ± 5 mm
• Trap Distance: P-Trap – 180 mm
• Floor to Outlet Centre Distance: ≤ 180 mm

Features

• Siphonic flushing with silent torque technology
• Dual flush system for optimized water efficiency
• Anti-germ glaze coating for better hygiene
• Smooth and easy-to-clean surface
• Durable and robust construction

Accessories Included

• UF Soft Close Slim Seat Cover (LYS-WHT-38103UF)
• Floor Fixing Screw (ZPS-SNS-FB02)
• Dual Flush Fittings (ZCF-WHT-FT020)

Care & Cleaning Guidelines

• Handle with care during storage, transport, and installation due to fragile ceramic material
• Installation is recommended with two persons
• Inspect the product for any damage before installation
• Avoid over-tightening to prevent cracks or chipping
• Do not move or rock the WC after fixing to prevent leakage
• Use mild, non-abrasive cleaners with a soft cloth or sponge
• Avoid harsh or chloride-based chemicals
• Rinse thoroughly with clean water after cleaning
• Clean chrome or metal parts with warm water and dry with a soft cloth
• Always use genuine accessories for best performance

Summary

The LYS-WHT-38853P180UFSM offers a perfect blend of space-saving design, quiet operation, and water efficiency. Its advanced flushing system, hygienic coating, and modern styling make it an ideal choice for contemporary bathrooms.
