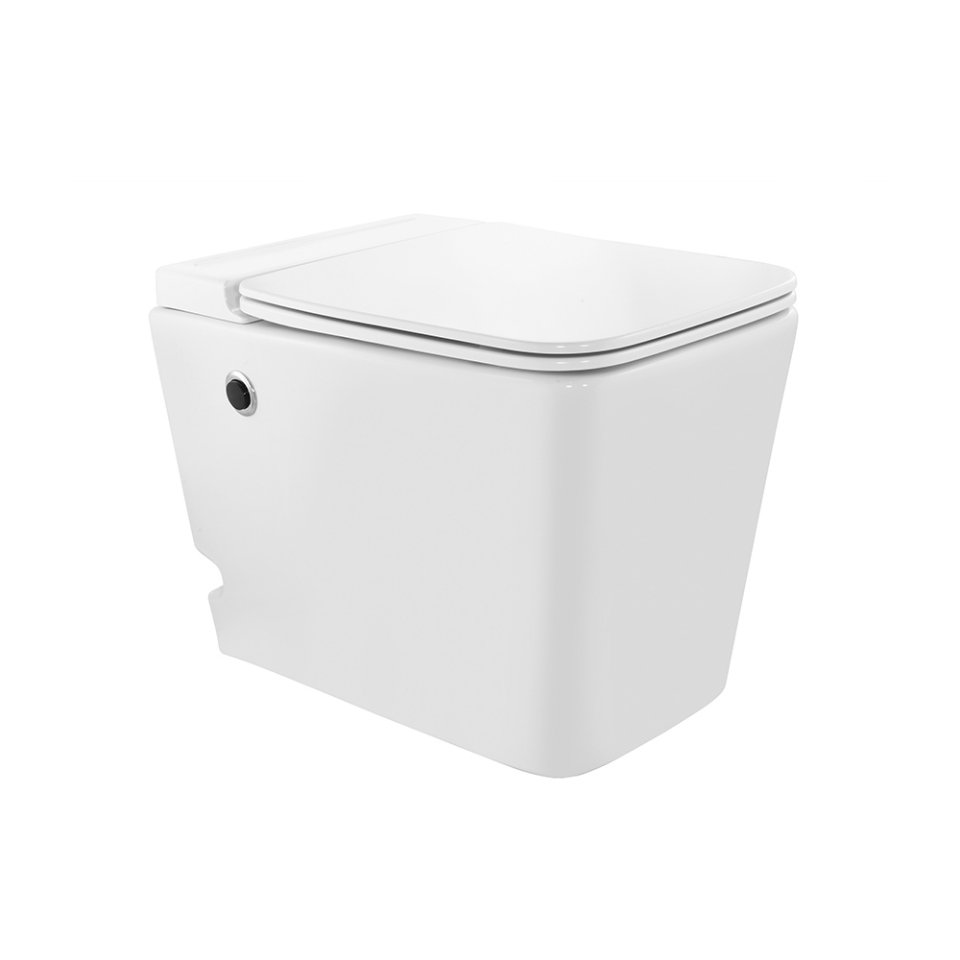

Tankless Single Piece WC

The Jaquar Tankless Single Piece WC – Model ARS-WHT-39851P180UFSMTL is a technologically advanced and space-efficient sanitary fixture designed for modern bathrooms. Built from premium vitreous china, it offers superior durability, a smooth finish, and long-lasting performance.

This model features a tankless design, eliminating the need for a conventional cistern and giving the bathroom a sleek, minimal look. Designed with a horizontal outlet (P-trap – 180 mm), it is ideal for wall drainage systems and compact installations.

Equipped with sensor-based and manual flushing options, the WC ensures both convenience and hygiene through touch-free operation. The jet-assisted flushing system delivers powerful cleaning with a single flush of 6 LPF, while the IP68-rated sensor ensures reliable performance even in wet environments.

The anti-germ glaze enhances hygiene by minimizing bacterial growth, and the UF soft-close seat cover provides added comfort with noiseless operation. This model is well-suited for premium residential as well as commercial spaces.

Key Highlights

• Advanced tankless single-piece WC design
• P-trap configuration (180 mm) for wall outlet installations
• Sensor-based and manual flushing for touch-free convenience
• Jet-assisted flushing system (6 LPF)
• IP68-rated sensor for high water resistance
• Anti-germ glaze for enhanced hygiene
• UF soft-close seat cover for comfort and quiet use

Technical Specifications

General Details

• Brand: Jaquar
• Product Code: ARS-WHT-39851P180UFSMTL
• Type: Tankless Single Piece WC
• Colour: White
• Material: Ceramic (Vitreous China)

Dimensions & Weight

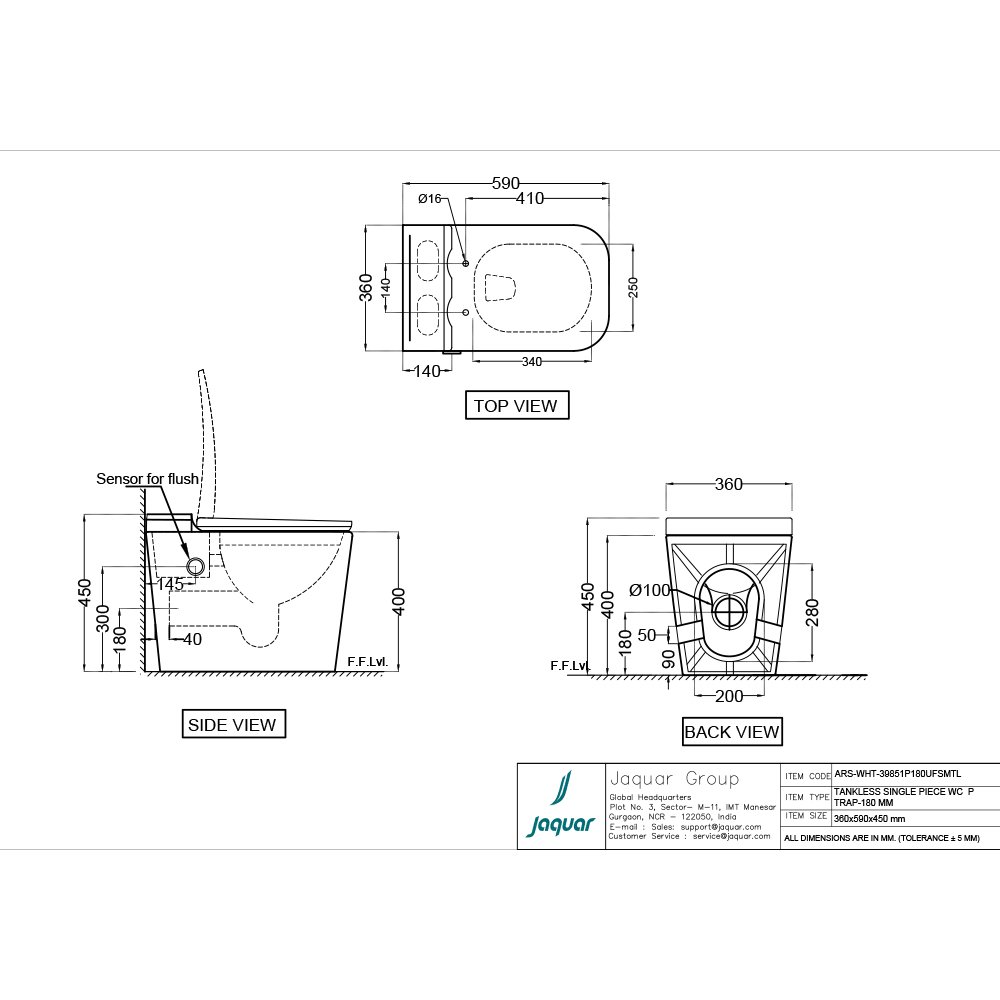

• Product Dimensions: 360 × 590 × 450 mm
• Bowl Inner Dimensions: 250 × 340 mm
• Net Weight: 34 kg
• Gross Weight: 40 kg
• Packaging Dimensions: 630 × 490 × 500 mm

Technical Details

• Outlet Type: Horizontal
• Trap Distance: P-Trap – 180 mm
• Floor to Outlet Centre Distance: ≤ 180 mm
• Sensor Range: 180 mm
• IP Rating: IP68

Features

• Tankless design for a clean, modern look
• Sensor and manual flushing options for flexibility
• Jet-assisted flushing for powerful performance
• Anti-germ glaze coating for improved hygiene
• Compact, space-saving structure
• Durable and easy-to-clean surface

Accessories Included

• UF Soft Close Seat Cover (ARS-WHT-39107UF)
• Angle Valve (ZPS-WHT-TL008)
• Floor Fixing Screw (ZPS-SNS-FB02)

Care & Cleaning Guidelines

• Handle with care during storage, transport, and installation due to fragile ceramic construction
• Installation should be carried out by two persons
• Inspect the product for any damage before installation
• Avoid over-tightening to prevent cracks or chipping
• Do not move or rock the WC after installation to avoid leakage
• Use mild, non-abrasive cleaners with a soft cloth or sponge
• Avoid harsh or chloride-based chemicals
• Rinse thoroughly with water after cleaning
• Clean chrome or metal parts with warm water and dry with a soft cloth
• Always use genuine accessories for optimal performance

Quality Standard

• Manufactured under ISO 9001 Quality Management System

Summary

The ARS-WHT-39851P180UFSMTL offers a perfect combination of smart technology, hygienic performance, and compact design. Its tankless construction, touch-free flushing system, and modern aesthetics make it an ideal choice for high-end, contemporary bathroom spaces.
