Single Piece WC

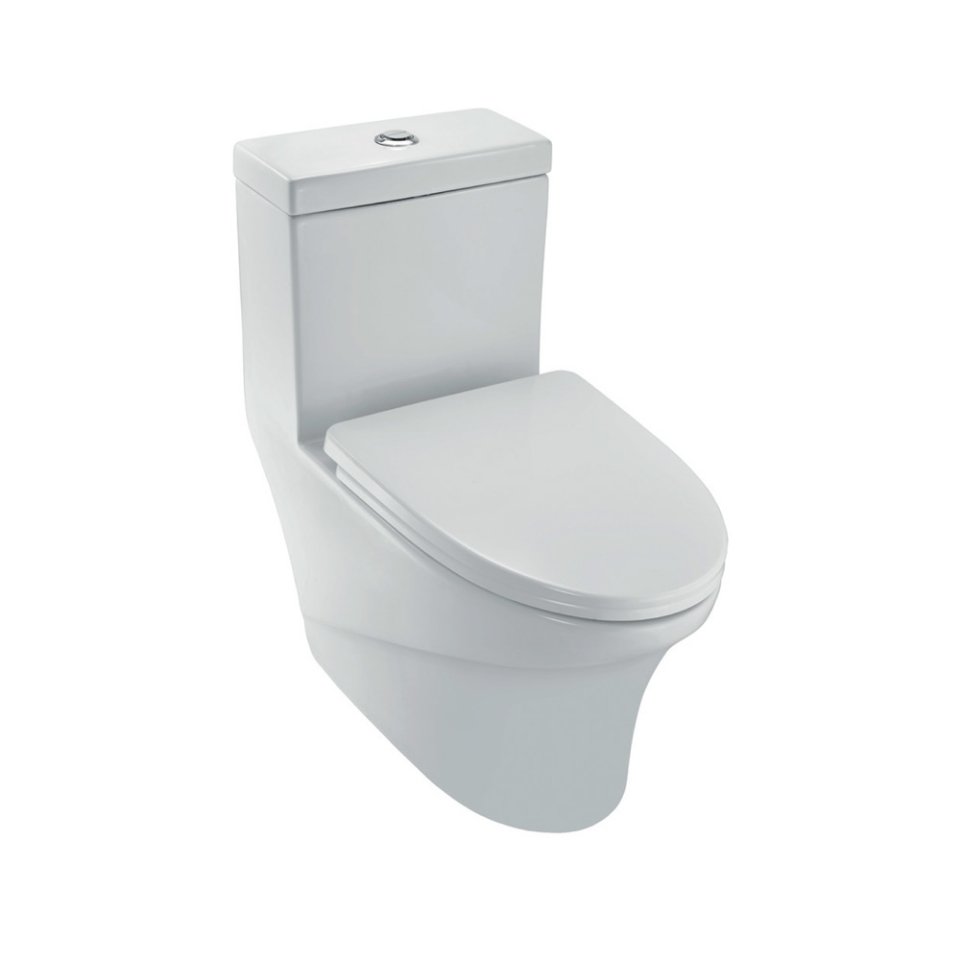

The Jaquar Single Piece WC (S-Trap) – Model VGS-WHT-81851S300UF is a premium sanitary fixture designed for durability, comfort, and efficient performance. Crafted from high-quality vitreous china, it offers a smooth, glossy finish and long-lasting reliability, making it suitable for both residential and commercial bathroom spaces.

Designed with a vertical outlet and S-trap configuration (300 mm), this WC is ideal for floor drainage systems and standard plumbing setups. Its larger bowl size enhances user comfort, while the elegant design complements modern interiors.

The WC features an advanced siphonic flushing system, ensuring powerful and consistent performance. The dual flush mechanism (2.6/4.6 LPF) helps conserve water while maintaining effective cleaning. With complete trap glazing and anti-germ glaze, the unit offers improved hygiene, reduced bacterial growth, and easy maintenance.

Key Highlights

• Stylish and durable single-piece WC design
• S-trap configuration (300 mm) for floor outlet installations
• Large bowl size for enhanced comfort
• Efficient siphonic flushing system
• Water-saving dual flush (2.6/4.6 LPF)
• Anti-germ glaze for improved hygiene
• Complete trap glazing for better cleanliness
• Smooth surface for easy cleaning

Technical Specifications

General Details

• Brand: Jaquar
• Product Code: VGS-WHT-81851S300UF
• Type: Single Piece WC (S-Trap)
• Colour: White
• Material: Ceramic – Vitreous China (VC)

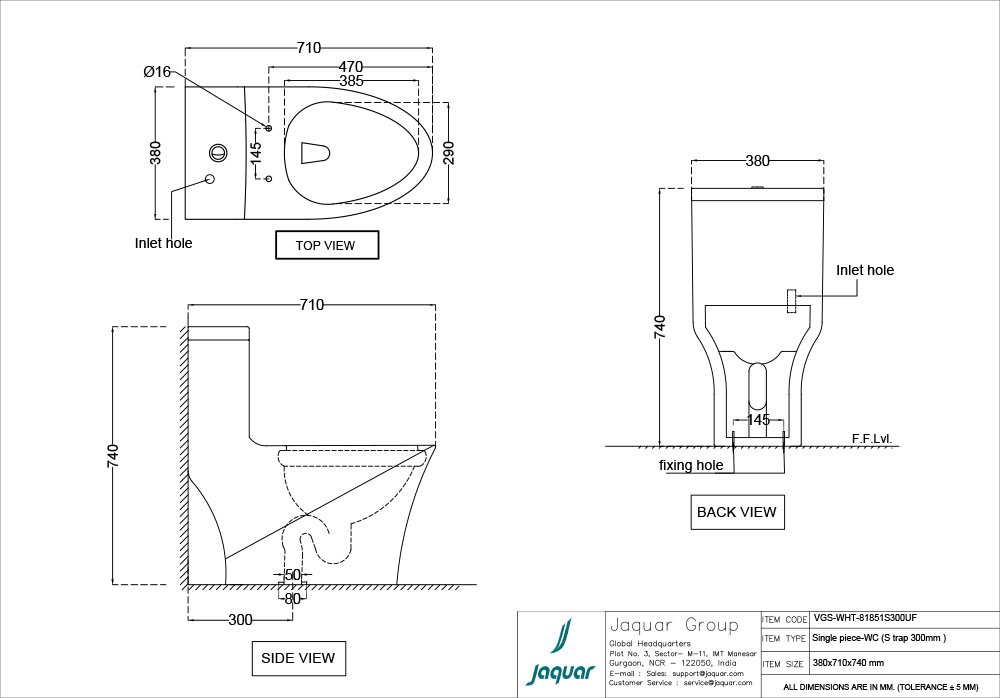

Dimensions & Weight

• Product Dimensions: 380 × 710 × 740 mm
• Bowl Inner Dimensions: 290 × 385 mm
• Net Weight: 47.6 kg
• Gross Weight: 53.7 kg
• Packaging Dimensions: 760 × 410 × 740 mm

Technical Details

• Outlet Type: Vertical
• Outlet Hole Diameter: Ø 80 mm
• Trap Distance: S-Trap – 300 mm
• Wall to Outlet Distance: ≤ 300 mm

Features

• Siphonic flushing for strong and efficient performance
• Dual flush system for optimized water usage
• Anti-germ glaze coating for enhanced hygiene
• Complete trap glazing for improved sanitation
• Smooth and easy-to-maintain surface
• Heavy-duty and robust construction

Accessories Included

• UF Seat Cover (VGS-WHT-81109UF)
• Floor Fixing Screw (ZPS-SNS-FB01)
• Wax Seal (ZPS-WHT-1401)

Care & Cleaning Guidelines

• Handle with care during transport and installation due to fragile ceramic construction
• Installation should be carried out by two persons
• Inspect the product for any damage before installation
• Avoid over-tightening to prevent cracks or chipping
• Do not move or rock the WC after installation to prevent leakage
• Use mild, non-abrasive cleaners with a soft cloth or sponge
• Avoid harsh or chloride-based chemicals
• Rinse thoroughly with clean water after cleaning
• Clean chrome or metal parts with warm water and dry with a soft cloth

Quality Standard

• Manufactured under ISO 9001 Quality Management System

Summary

The VGS-WHT-81851S300UF combines robust construction, enhanced comfort, and efficient flushing performance. With its hygienic features, water-saving system, and elegant design, it is a dependable choice for modern bathroom environments.
