INTELLIGENT PRESSURE BOOSTING PUMP-V GUARD-VIB750

The V-Guard VIB-750 is an intelligent pressure booster pump designed to increase water pressure in residential and light commercial plumbing systems—particularly useful where tap and shower pressure is low.

🔧 Core Function

Its primary role is to boost water flow and pressure from existing supply lines (e.g., overhead tanks, municipal lines) so fixtures like showers, taps, hoses, and appliances receive steady pressure.

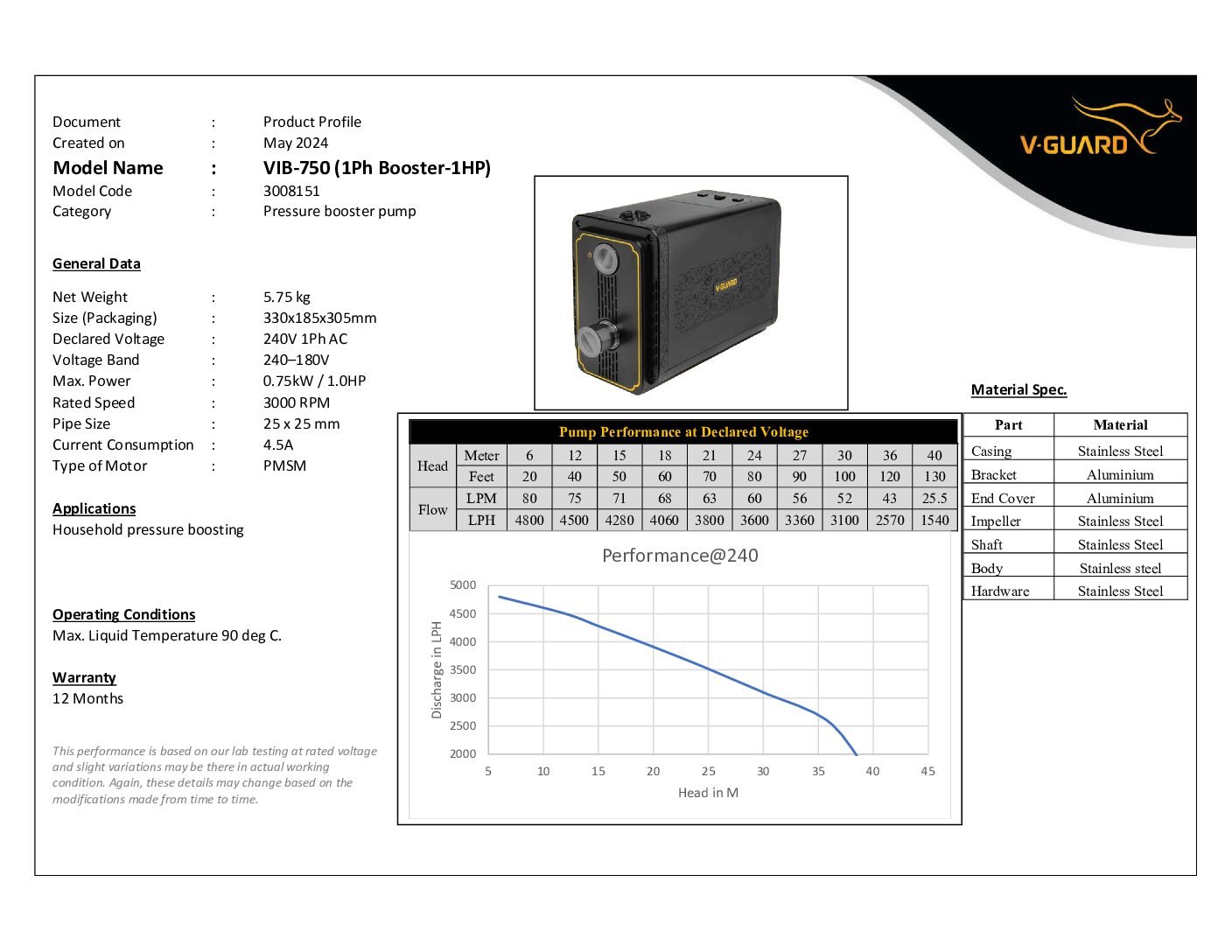

⚙️ Key Technical Specs (Evidence-Sourced)

• Motor Power: ~0.75 kW (≈1 HP) electric motor for strong boosting capability.

• Voltage: Operates on single-phase AC, 240 V nominal (wide range tolerance ~180–240 V).

• Rated Speed: ~3000 RPM.

• Current: ~4.5 A typical draw.

• Pipe Compatibility: 25 × 25 mm inlet/outlet.

• Motor Type: Permanent Magnet Synchronous Motor (PMSM) often marketed as BLDC-type for higher efficiency.

• Weight: ~5.75 kg.

🧠 Smart/Automatic Features (Based on product positioning)

• Automatic start/stop: Likely via a pressure switch that activates only when demand (flow/pressure) drops.

• Thermal overload protection: Protects the motor from overheating.

• Low noise operation: Designed for indoor installation.

📌 Typical Applications

• Boosting water pressure for homes and apartments with weak supply.

• Use with showers, bathroom taps, washers and other water outlets needing stronger flow.

• Can serve multi-story dwellings, depending on system layout and head requirements.

🧱 Build & Reliability Considerations

Based on V-Guard’s general pump quality (not specific to this model), their domestic pumps often use corrosion-resistant materials, sealed bearings, and durable motor components.
