BOWL WITH CISTERN FOR COUPLED WC

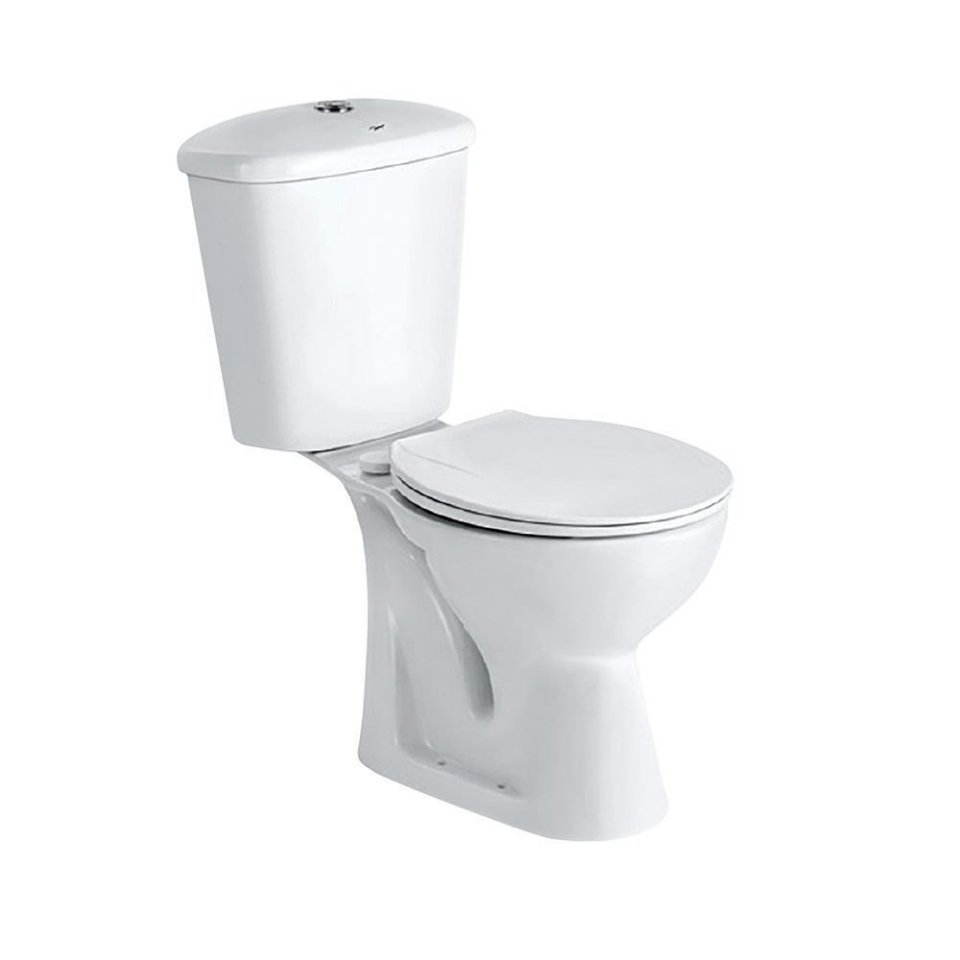

Jaquar CNS-WHT-751S300SPPZ Coupled WC (S-Trap) – Complete Set

The Jaquar CNS-WHT-751S300SPPZ is a reliable and ergonomically designed coupled water closet (WC), crafted to deliver efficient performance, durability, and enhanced hygiene for modern bathrooms. Made from high-quality vitreous china (VC), it ensures long-lasting strength, a smooth surface finish, and resistance to stains and wear.

With dimensions of 410 × 660 × 810 mm and a comfortable bowl opening (285 × 335 mm), this WC is designed for user convenience while maintaining a compact footprint. The S-trap configuration with a 300 mm trap distance makes it suitable for floor-mounted drainage systems with extended outlet positioning.

Key Features

• Premium vitreous china construction for durability and longevity
• Dual flush system (3/6 LPF) for water-saving efficiency
• Wash-down flushing for effective bowl cleaning
• Box rim design ensuring uniform water flow
• Anti-germ glaze for improved hygiene and bacterial resistance
• Smooth glazed surface for easy maintenance
• Heavy-duty soft-close seat cover for comfort and durability
• Complete trap wash for better sanitation

Product Specifications

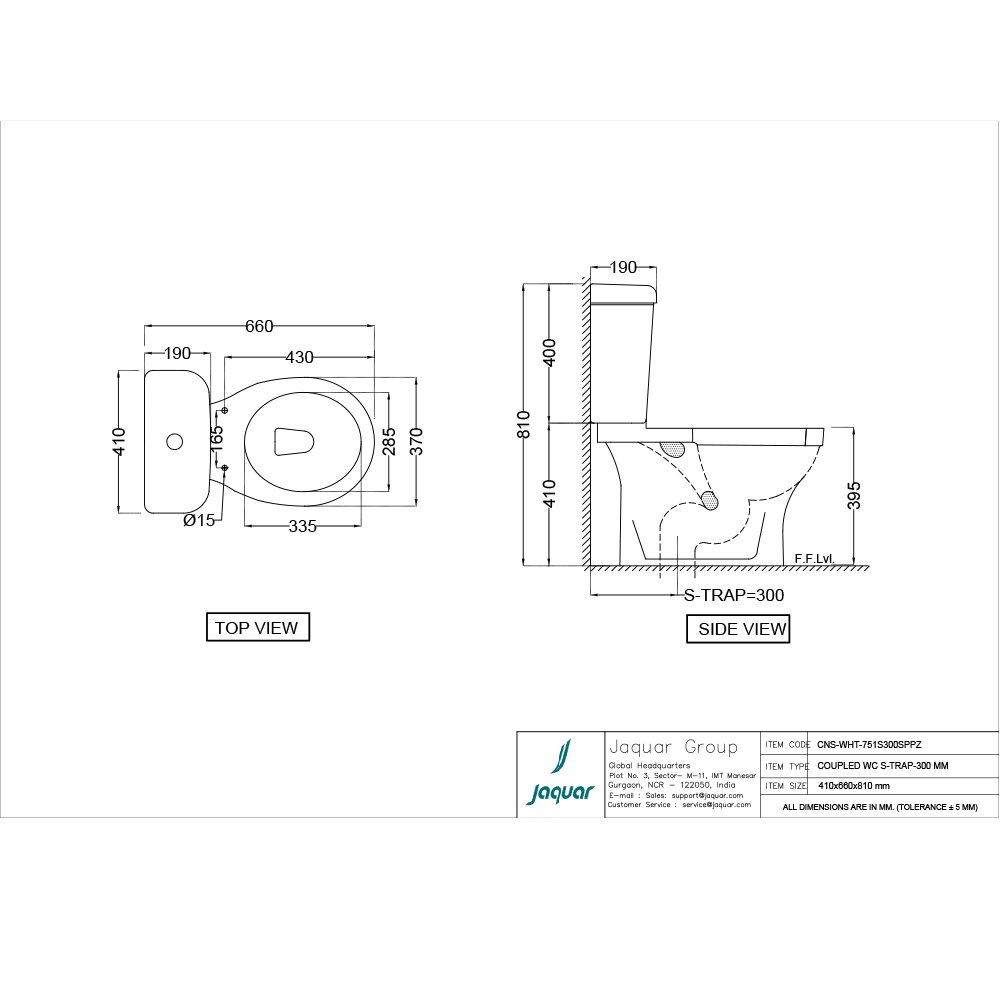

• Dimensions: 410 × 660 × 810 mm
• Inner Bowl Size: 285 × 335 mm
• Net Weight: 31 kg | Gross Weight: 35.8 kg
• Packaging Size: 820 × 420 × 410 mm
• Outlet Type: Vertical
• Trap Distance: 300 mm (S-trap)
• Outlet Hole Diameter: Ø 100 (+5/-2 mm)
• Floor-to-outlet center distance: ≤ 300 mm

Accessories Included

• PP soft-close seat cover (CNS-WHT-105S)
• Floor fixing screws (ZPS-SNS-FB11)
• Cistern (CNS-WHT-201C)
• Cistern fittings (ZCF-WHT-FT003)
• Wax seal (ZPS-WHT-1401)

Care & Maintenance Highlights

• Handle carefully, as vitreous china is fragile
• Use two-person handling during installation due to weight
• Avoid over-tightening fittings to prevent cracks or chipping
• Clean with soft cloths and non-abrasive cleaners only
• Do not allow cleaning agents to sit on the surface
• Regular cleaning maintains shine, hygiene, and performance

Quality Assurance

Manufactured under an ISO 9001 certified Quality Management System, this product reflects Jaquar’s commitment to high standards of quality, consistency, and customer satisfaction.
